Pipeline Reflect

https://www.brothers-sons.dk/web/image/product.template/8925/image_1920?unique=e2f618f

BB&S Pipeline Reflect

kr 0,00 0.0 DKK kr 0,00

kr 0,00

  • Length
  • Color Temp.

This combination does not exist.

  • Variety of lengths: 1’, 2’, 3’, 4’, 6’, 8’

  • Perfect rendering 95 TLCI Remote Phosphor Pipes

  • Choice of 3200°K or 5600°K

  • 120-degree angle dispersion

  • Minimized Spill

  • Robust aluminum housing

  • Twice the foot candle output as Pipes without Reflect Housing

  • Easy mounting and compatibility with a full range of accessories

  • Optional battery operation

  • Compatible with BB&S 4-way Controller with DMX/RDM 512 in/out (all function) with 48VDC power.

  • Strobe capability, especially when used with optional BB&S 4-Way Controller

  • Optional Mini Yokes available for single, dual or quad mounting

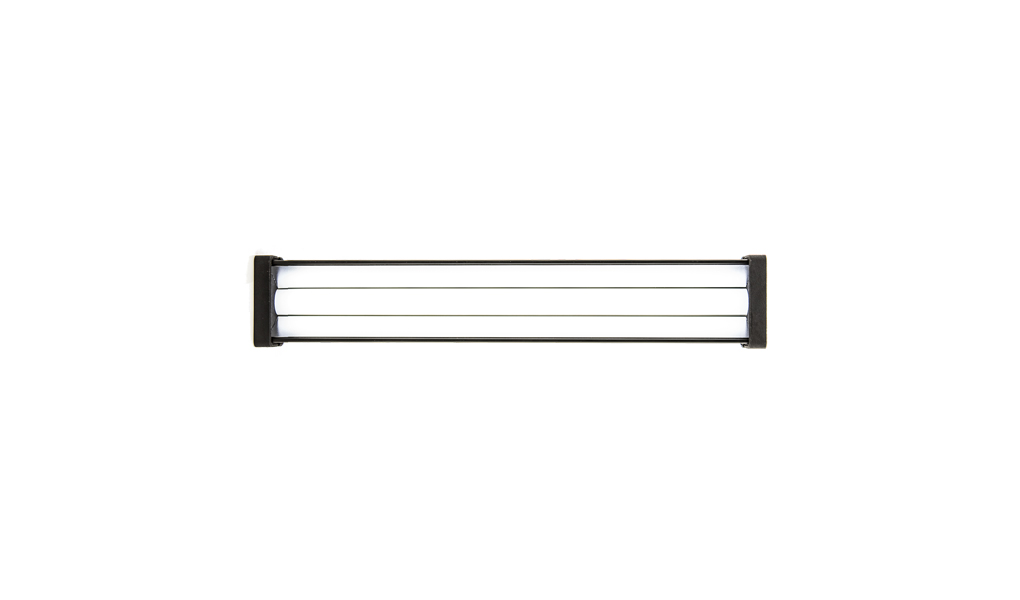

1-Foot

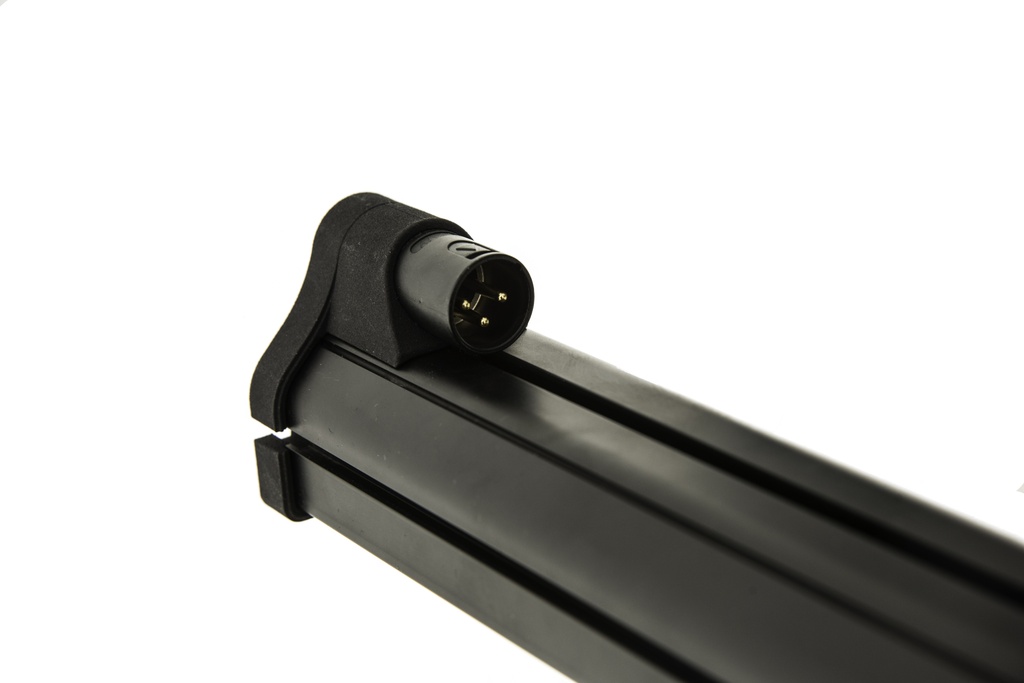

Connector: Neutric XLR 3pin Male (Single Channel)
Power Draw: 10W draw
2-Foot
Connector: Neutric XLR 3pin Male (Single Channel)
Power Draw: 20W draw
3-Foot
Connector: Neutric XLR 3pin Male (Single Channel)
Power Draw: 30W draw
4-Foot
Connector: Neutric XLR 3pin Male (Single Channel)
Power Draw: 40W draw
6-Foot
Connector: Neutric XLR 4pin Male (Dual Channel)
Power Draw: 2x30W draw
8-Foot
Connector: Neutric XLR 4pin Male (Dual Channel)
Power Draw: 2x40W draw

BB&S 4-Way Controller (SKU#3693)

The BB&S 4-way controller Offers 4x40 Watts Channels, powering up to 4x 40W fixtures on one unit. The 4-Way controller offers Full DMX & RDM capabilities. And ensures perfect dimming for eg. High Speed Shooting.


Pipeline Manual Dimmer 1,2,3 & 4-Foot

The Manual dimmer offers simpel local control over one unit, with DC power. Enabling users to run their unit on D-tap from a Battery.


6-& 8-Foot (Dual Channel)

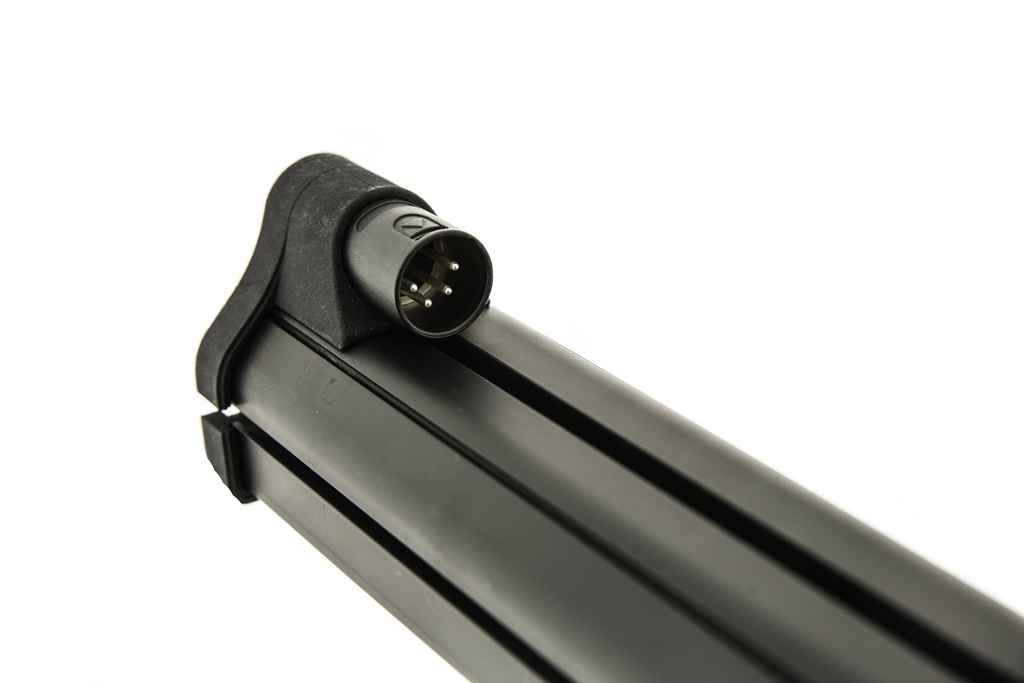

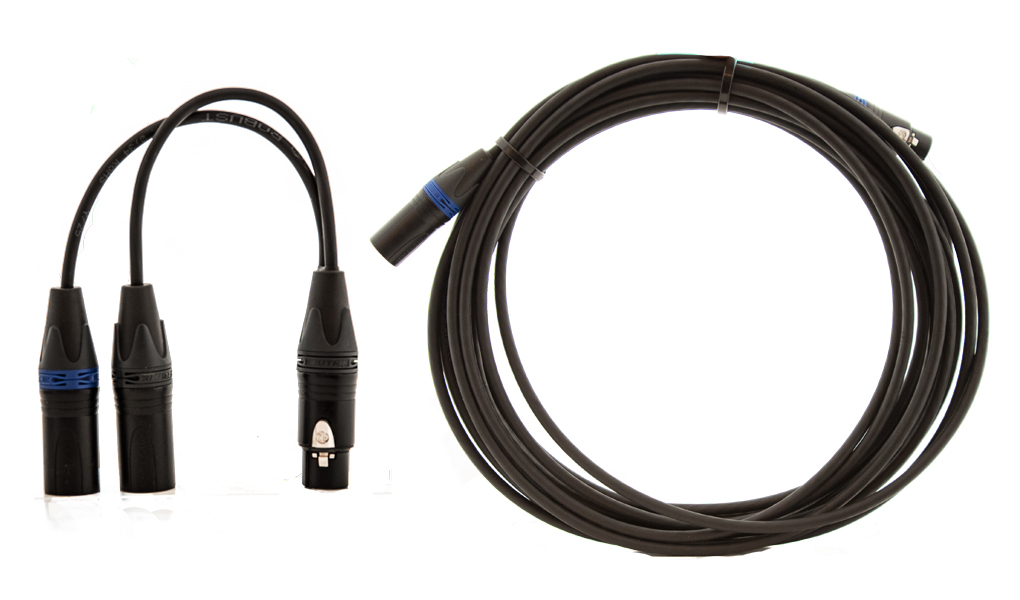

The Reflect 6 & 8-Foot units are mounted with a 4 pin XLR male. To connect to the 4-Way Controller a split cable is needed from 4-Pin Female to 2x3pin Male.

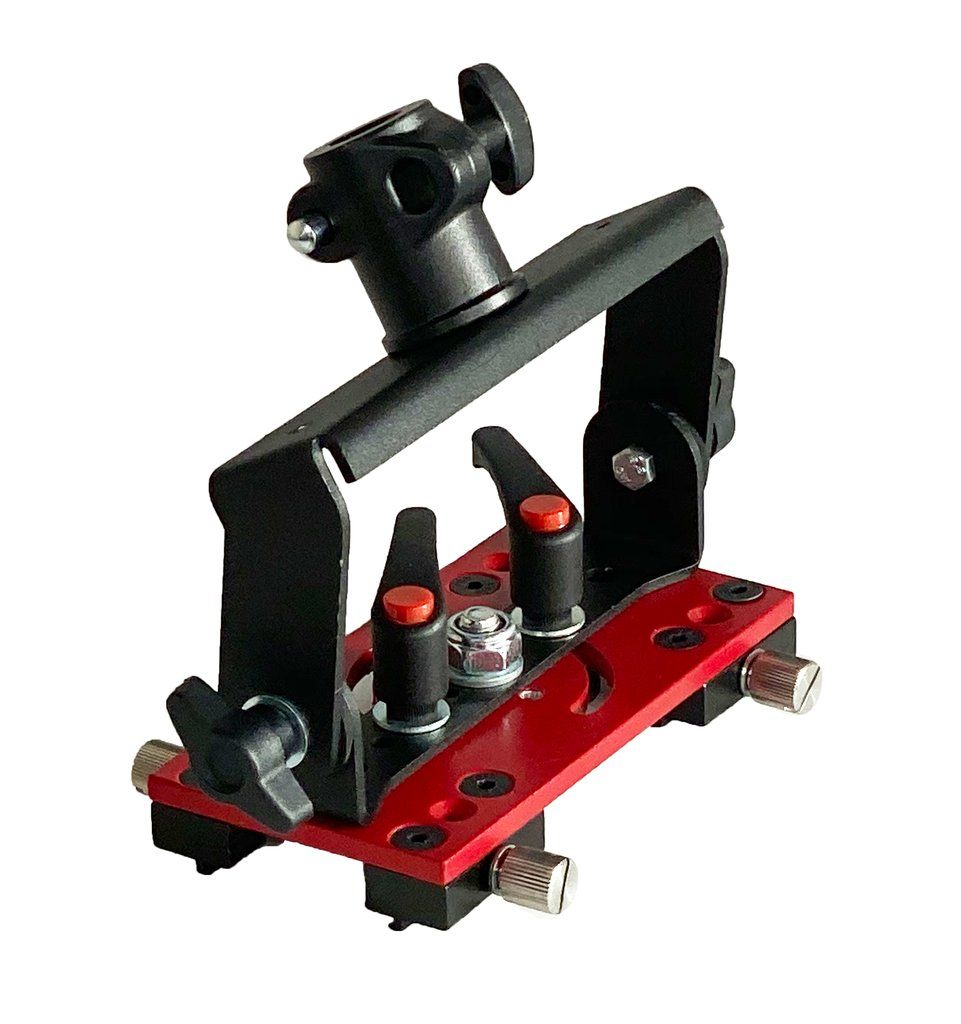

BB&S Pipeline Reflect Mini Yoke
With Reflect sliders for mounting in the rail on the reflects.

Single - For mounting a Single Reflect



Dual - Create a 2-Bank from 2 single reflects of your choice.


Quad - Create a 4-Bank from 4 single reflects of your choice.


Pipeline Reflect in Action

Pictures from the real world
