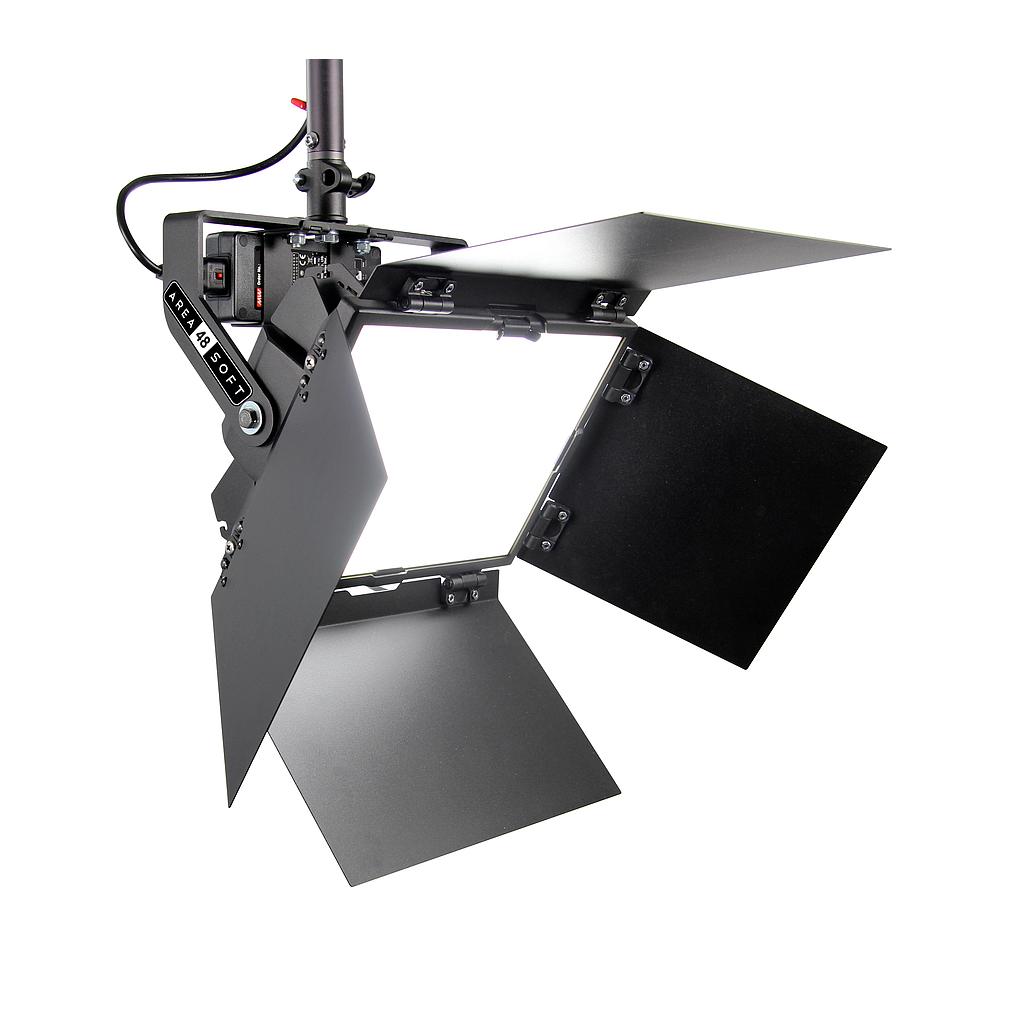

Area 48 Soft

https://brothers-sons.odoo.com/web/image/product.template/8928/image_1920?unique=da02408

Kit Includes: Chroma Blue, Curved yoke, Detachable Barndoors - incl. 20 volt PSU mounted on unit, locking IEC, TVMP

kr 0,00 0.0 DKK kr 0,00

kr 14.600,00

  • Power Cable

This combination does not exist.


The AREA 48 Soft LED operates on 110-240 VDC as well as 10-20 VDC for Battery operation with HD-friendly 98 TLCI soft light output is comparable to a 1200 Watt traditional soft light while drawing only 122 watts and represents the next-generation in lighting technology for studio and location work. BB&S new integrated LED technology moves the phosphor away from the LED itself, thereby greatly improving color rendering, consistency, and light output.

Remote Phosphor Media

Area 48 is characterized by an unprecedented Interchangeable Phosphor Technology light quality and its compact size with the surface area of an A4 paper. 48 blue diodes behind a remote polycarbonate diffuser with a layer of phosphor ensures a very even light and an exceptionally softshadow.

Available Medias:
Chroma Green 525n, 98 TLCI 2700k, 98 TLCI 3200k, 98 TLCI 4300k, 98 TLCI 5600k and 98 TLCI 6500k, Chroma Blue  and 10,000k Phosphor Panels.

Read about Remote Phosphor



Optional Accessories

  • Chroma Green 525n, 98 TLCI 2700k, 98 TLCI 3200k, 98 TLCI 4300k, 98 TLCI 5600k and 98 TLCI 6500k, Chroma Blue  and 10,000k Phosphor Panels
  • V-lock Battery Plate or Gold Mount Battery Plate
  • DoPchoice 40 degree Snapgrid for use on Barn Doors
  • Dopchoice Rigid Softbox including diffusion
  • DoPchoice 40 degree Snapgrid XS for use on Softbox
  • Canvas Carrying Cases for 1 or 2 fixtures
  • Phosphor Panel Pouch
  • Remote dimmer for use with BBS Net software


 Area 48 Features:

  • Extremely High Light Output

  • Excellent Shadow Rendering

  • Flicker-Free Dimming from 0 - 100%

  • 8 / 16 Bit Dimming 0-100%

  • Special Effects Strobing Mode

  • Silent Operation (no fan)

  • Internal DMX 512 for remote control

  • 4 Pin XLR for Power / Power + DMX

  • Very Compact Versatile Unit

Specifications

POWER
AC Power: 100 - 240V 50/60 Hz
Max Power Consumption 122W

LED
Premium LED Array - 50K hour life

CONTROL
Manual or internal DMX512
DMX in/out for Daisy-Chaining

8 / 16 Bit Dimming 0 - 100%

Up to 4 Control Channels in 16 Bit
Mode, Selectable via Digital Display

DIMENSIONS WITH CLOSED BARN DOORS
W: 356mm/13.97”
H: 275mm/10.82”
D: 115mm/ 4.53”
Weight: 3.6 kg / 7.94 lbs

THERMAL
Ambient Operating Temperature: 0-40°C / 0-104°F

Phosphor Panels - Chroma Green/ 98 TLCI 2700k / 98 TLCI 3200k / 98 TLCI 4300k / 98 TLCI 5600k / 98 TLCI 6500k, Chroma Blue(included) and 10,000K

 8-Bit (Strobe On) Fixture set on DMX address #001

Dimmer Strobe Intensity Strobe Lenght
DMX#001DMX#002DMX#003

16-Bit (Strobe On) Fixture set on DMX address #001

DimmerStrobe IntensityStrobe Lenght
DMX#001+002DMX#003DMX#004
