Area 48 Studio

https://brothers-sons.odoo.com/web/image/product.template/8929/image_1920?unique=de9b15e

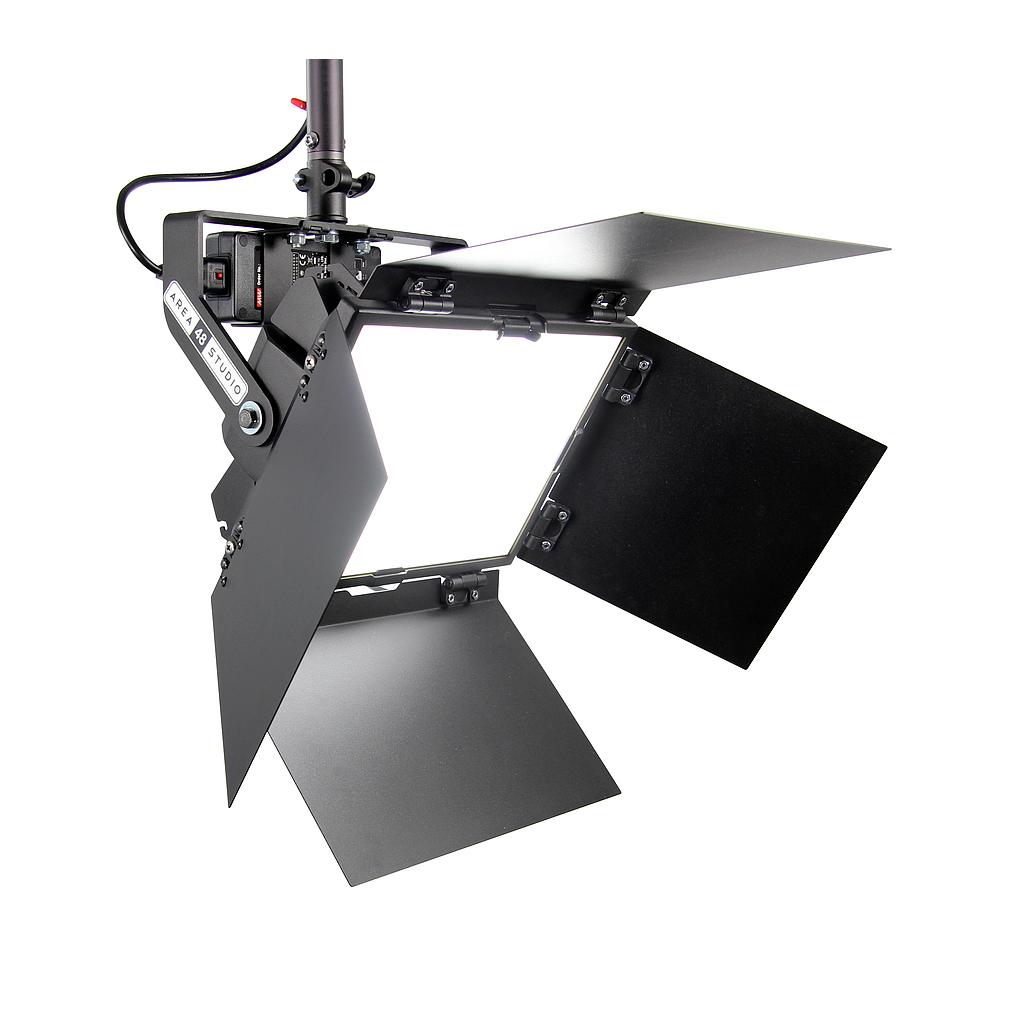

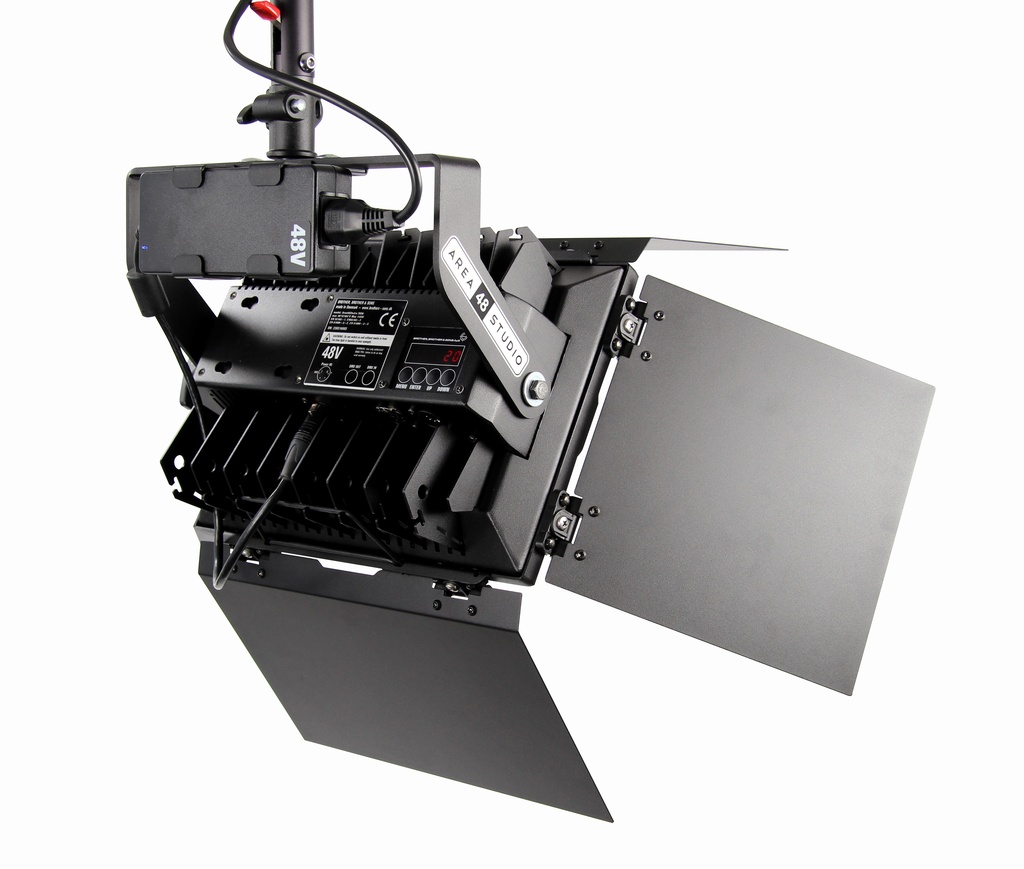

Kit Includes: Curved yoke, Detachable Barndoors - incl. 48 volt PSU mounted on unit, locking IEC, TVMP and Chroma Blue Media

kr 0,00 0.0 DKK kr 0,00

kr 14.600,00

  • Power Cable

This combination does not exist.

 Area 48 Features:

Phosphor Panels - Chroma Green/ 98 TLCI 2700k / 98 TLCI 3200k / 98 TLCI 4300k / 98 TLCI 5600k / 98 TLCI 6500k, Chroma Blue and 10,000K

  • Extremely High Light Output
  • Excellent Shadow Rendering
  • Flicker-Free Dimming from 0 - 100%
  • 8 / 16 Bit Dimming 0-100%
  • Special Effects Strobing Mode
  • Silent Operation (no fan)
  • Internal DMX 512 for remote control
  • 4 Pin XLR for Power / Power + DMX
  • Very Compact Versatile Unit

Specifications

POWER
AC Power: 100 - 240V 50/60 Hz
Max Power Consumption 122W

LED
Premium LED Array - 50K hour life

CONTROL
Manual or internal DMX512
DMX in/out for Daisy-Chaining

8 / 16 Bit Dimming 0 - 100%

Up to 4 Control Channels in 16 Bit
Mode, Selectable via Digital Display

DIMENSIONS WITH CLOSED BARN DOORS
W: 356mm/13.97”
H: 275mm/10.82”
D: 115mm/ 4.53”
Weight: 3.6 kg / 7.94 lbs

THERMAL
Ambient Operating Temperature: 0-40°C / 0-104°F



  • Chroma Green 525n, 98 TLCI 2700k, 98 TLCI 3200k, 98 TLCI 4300k, 98 TLCI 5600k and 98 TLCI 6500k, Chroma Blue  and 10,000k Phosphor Panels
  • V-lock Battery Plate or Gold Mount Battery Plate
  • DoPchoice 40 degree Snapgrid for use on Barn Doors
  • Dopchoice Rigid Softbox including diffusion
  • DoPchoice 40 degree Snapgrid XS for use on Softbox

 8-Bit (Strobe On) Fixture set on DMX address #001

Dimmer Strobe Intensity Strobe Lenght
DMX#001DMX#002DMX#003

16-Bit (Strobe On) Fixture set on DMX address #001

DimmerStrobe IntensityStrobe Lenght
DMX#001+002DMX#003DMX#004

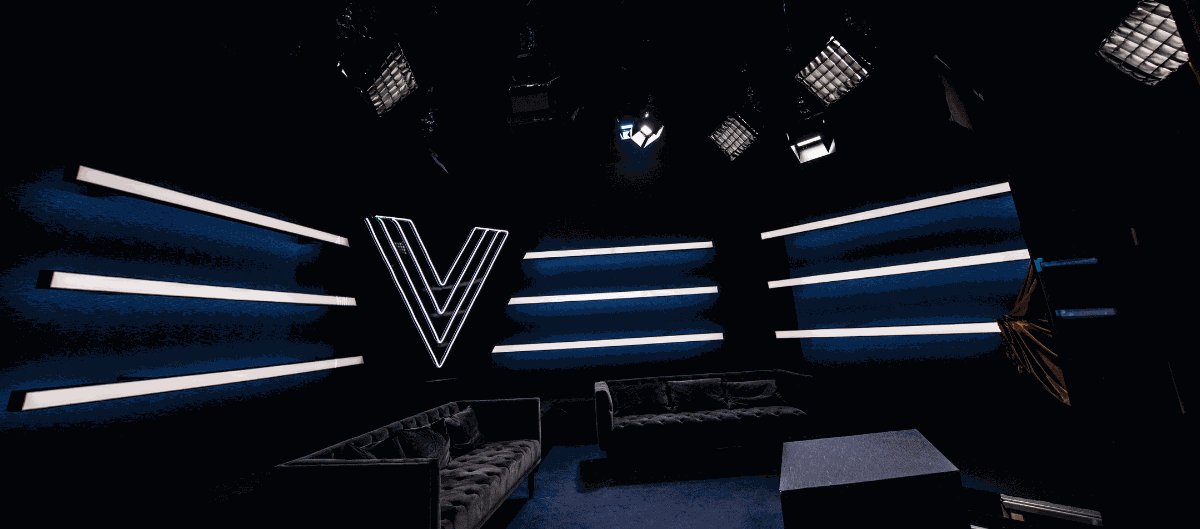

#Area 48 in Action

Pictures from the real world

- An additional information
