K7 Twist

https://www.brothers-sons.dk/web/image/product.template/8936/image_1920?unique=b391926

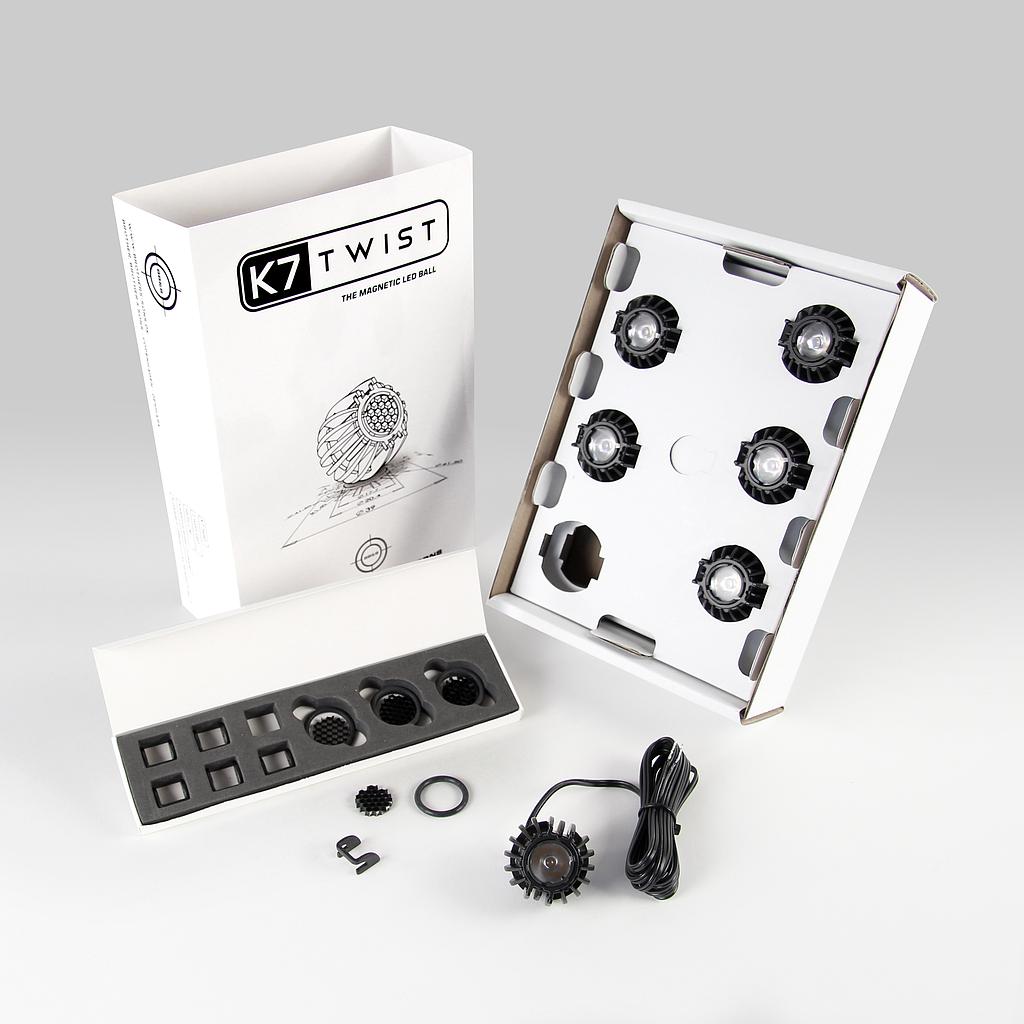

Box contains 6 pcs. magnetic K7 with 2,5 meter cable bare ends, narrow optics, honeycombs, o-rings, and angle bracket

kr 0,00 0.0 DKK kr 0,00

kr 3.800,00

  • Color Temp.
  • Color

This combination does not exist.

Size matters and looks count

The K7 is compact, highly versatile and just plain cool.
Designed for easy focusing and a great quality of light.

The K7 has become very popular as set and museum display lighting. It takes up very little space and delivers a wide range of lighting option.

The K7 is attached via a strong neodymium magnet and can be focused in any direction. Beam control is obtained by the use of quick change lenses and honeycombs.

The K7 comes with a 3W LED at 2700ºK, 3000ºK or 4000ºK LED. With a diameter of 35mm the K7 is suitable for most setups.

POWER
Max. Forward Current: 700 mA
Typical Forward Voltage: 2.9 V
2700K Min. Flux at 700 mA:160 lm
3000K Min. Flux at 700 mA: 237 lm
4000K Min. Flux at 700 mA: 237 lm

CONTROL
0-10V Dimmable LED Driver

DIMENSIONS
Diameter: 35 mm / 1.38”
Weight: 50 g / 0.11 lbs

THERMAL Ambient Operating Temperature:
0-40°C / 0-104°F

AC Drivers for K7 Twist

Mean Well LCM_25
(25Watt driver runs up to 8 K7’s on full power)


Mean Well LCM_40
(40Watt driver runs up to 13 K7’s on full power)


Mean Well LCM_60
(60Watt driver runs up to 20 K7’s on full power)


DMX Controller/Decoder

Ltech LT-858-CC  (4 Channel DMX Controller/Decoder)


Option to run K7’s on individual DMX Channels.

Note!: The controller(s) needs a PSU equivalent to the power usage of the total amount of K7.


Example #1: 4x4K7 = 4x4x3Wx1Amp = 48Watt

Example #1: 4x10K7 = 4x10x3Wx1Amp = 120Watt

(Please contact BB&S if you need a quote on PSUs that matches your project)


Contact BB&S for more info & Pricing


K7 Twist

In Action
Pictures from the real world
