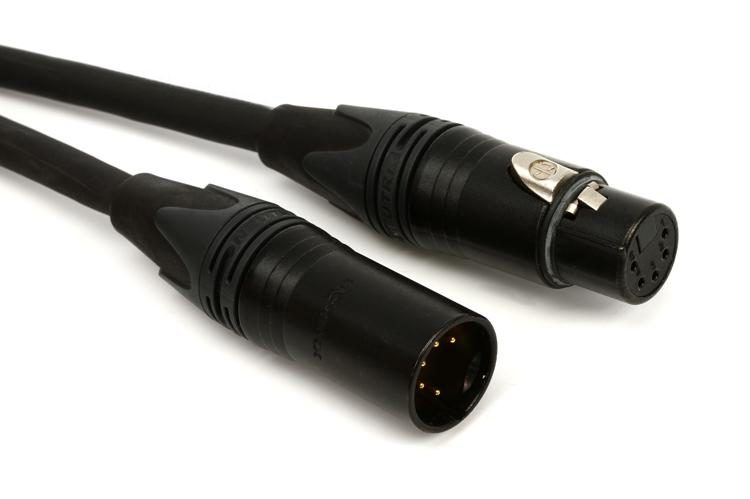

5-Pin DMX Cable

5-Pin DMX Cable

Length (Meter)
Color

This combination does not exist.

5P DMX kabel (1 PAR), HELUKABEL, Neutrick connectors (Assembled in Denmark)

Color : Black

Specifications:

Type: DMX cable
Cable structure: 2x0,34
Conductor material: Copper, bare
Core insulation: Cell PE
Core colours: rd, wh
Stranding element: 2 cores with textile filler stranded
Sheath material: PVC
Cable external diameter: approx. 6,4 mm
Sheath colour: black

Electrical data

Characteristic impedance: 110 Ohm
Conductor resistance, max.: 53 Ohm/km
Insulation resistance, min.: 10 GOhm x km

Technical data

Weight: approx. 50 kg/km
Min. bending radius for laying: 64 mm
Operating temperature range min.: -30°C
Operating temperature range max.: +70°C
Copper weight: 18,0 kg/km
