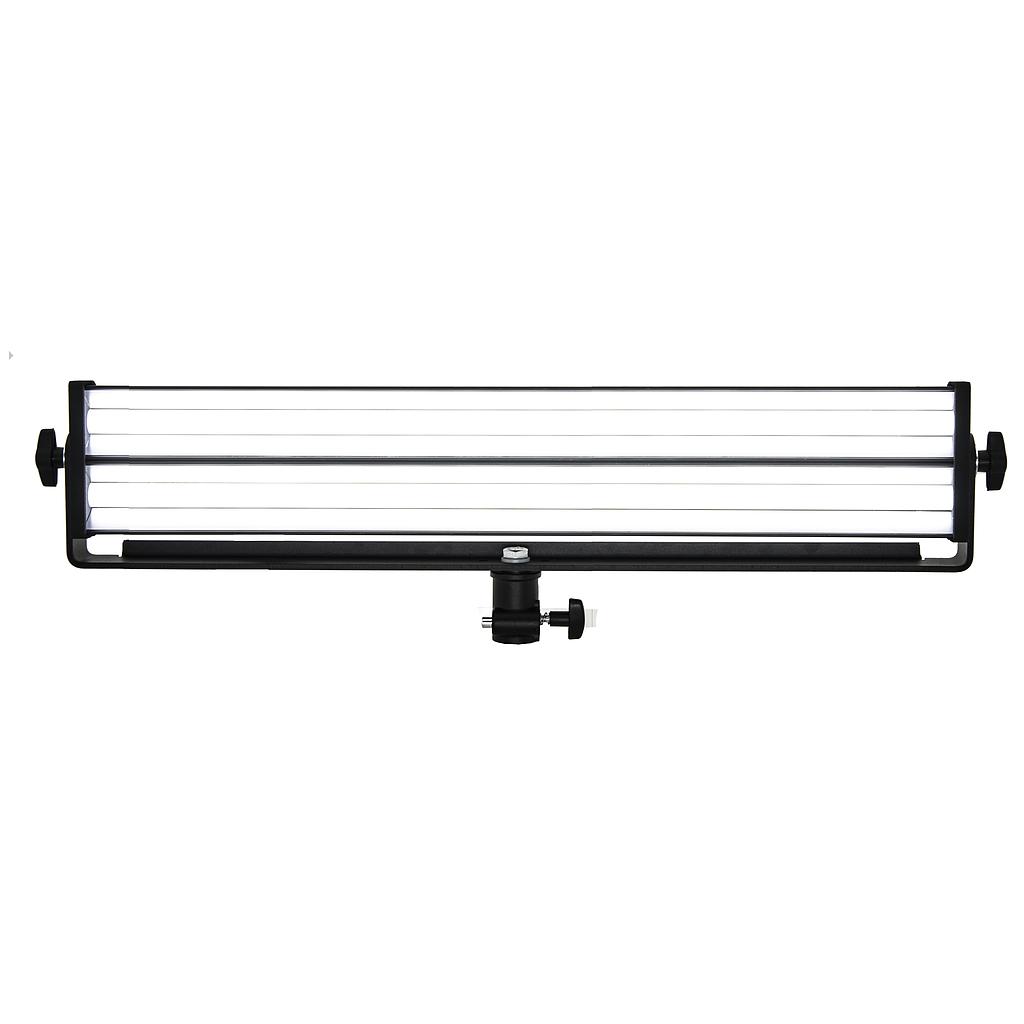

Pipeline Reflect 2-Bank

  • Length
  • Color Temp.

Denne kombination eksistere ikke.


Available in 2, 4, 6, and 8 Foot. The 2 and 4 Foot 2 Banks come with a yoke & TVMP, and the 6 and 8 Foot come with a center mount and can
be chained together.



  • Variety of lengths: 2’, 4’, 6’, 8’

  • Perfect rendering 95 TLCI Remote Phosphor Pipes

  • Choice of 3200°K or 5600°K

  • 120-degree angle dispersion

  • Minimized Spill

  • Robust aluminum housing

  • Twice the foot candle output as Pipes without Reflect Housing

  • Easy mounting and compatibility with a full range of accessories

  • Optional battery operation

  • Compatible with BB&S 4-way Controller with DMX/RDM 512 in/out (all function) with 48VDC power.

  • Strobe capability, especially when used with optional BB&S 4-Way Controller


2-Foot 2-Bank

Connector: Neutric XLR 3pin Male (Single Channel)
Power Draw: 40W draw
4-Foot 2-Bank
Connector: Neutric XLR 3pin Male (Dual Channel)
Power Draw: 2x40W draw
6-Foot 2-Bank
Connector: Neutric XLR 4pin Male (2x Dual Channel)
Power Draw: 4x30W draw
8-Foot 2-Bank
Connector: Neutric XLR 4pin Male (2x Dual Channel)
Power Draw: 4x40W draw

BB&S Pipeline Reflect Mini Yoke
With Reflect sliders for mounting in the rail on the reflects.

Pipeline Mini Yoke Single  -  SKU#6422



BB&S 4-Way Controller (SKU#3698)

The BB&S 4-way controller Offers 4x40 Watts Channels, powering up to 4x 40W fixtures on one unit. The 4-Way controller offers Full DMX & RDM capabilities. And ensures perfect dimming for eg. High Speed Shooting.


Pipeline Manual Dimmer 1,2,3 & 4-Foot

The Manual dimmer offers simpel local control over one unit, with DC power. Enabling users to run their unit on D-tap from a Battery.


6-& 8-Foot (Dual Channel)

The Reflect 6 & 8-Foot units are mounted with a 4 pin XLR male. To connect to the 4-Way Controller a split cable is needed from 4-Pin Female to 2x3pin Male.
